Stainless Steel Mesh

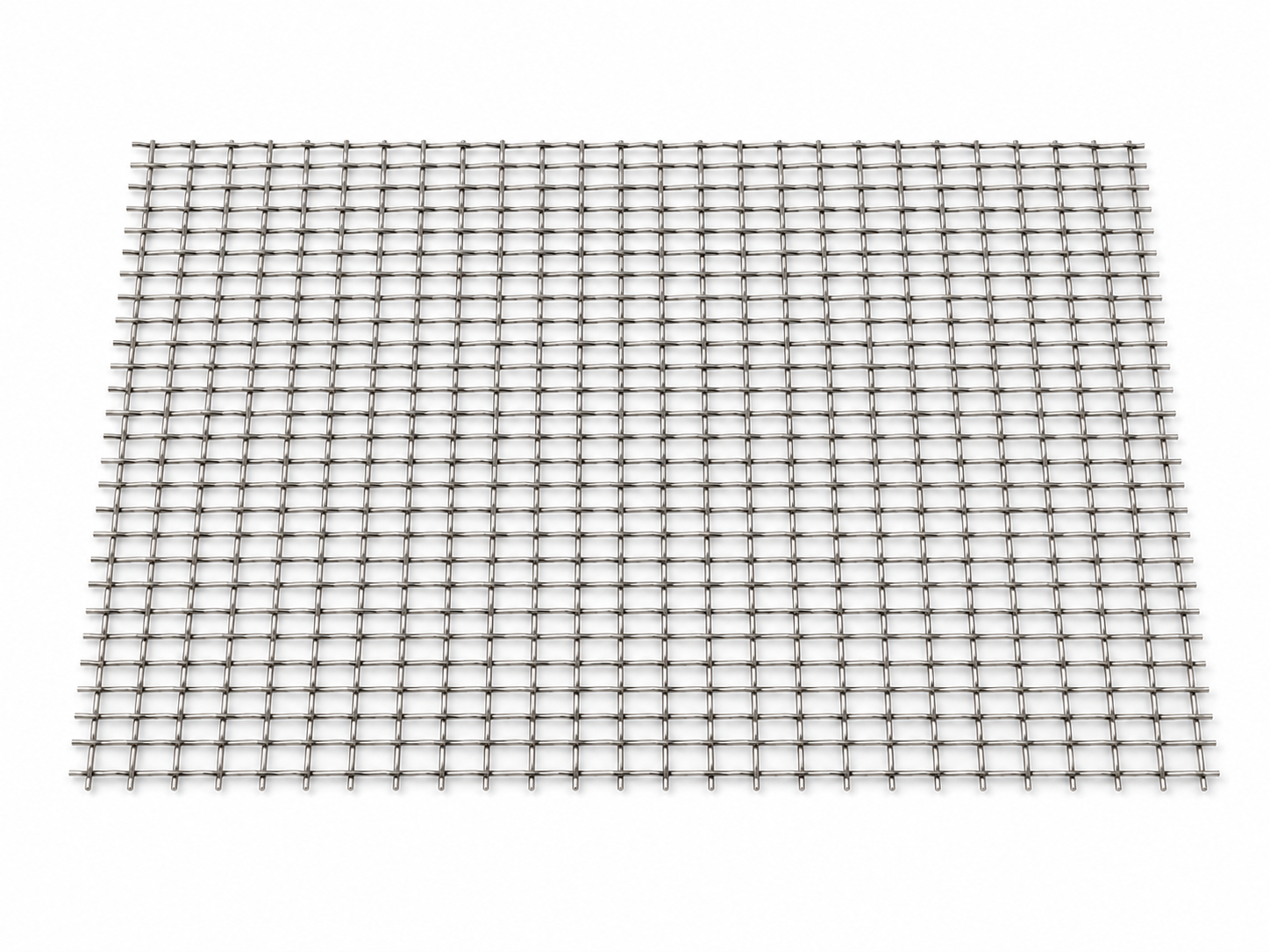

Stainless steel Mesh is created by weaving thin Stainless steel wire together in a pattern. The flexibility of the Mesh is determined by the wire diameter, the pattern of the weave, and the size of the openings (aperture) and the distance from the centre of one wire to the centre of an adjacent wire (pitch).

Stirings stocks a range of Stainless steel Mesh, including Welded Mesh, Woven Mesh and Modern Metal Mesh, including Rigid Mesh (Plain Weave, Galaxi, Bambuu, Tatuu and Cross), and Flexible Mesh (Arina, Taqila, Doffy, Motiff and Virko).

Welded Wire Mesh is currently in stock in Austenitic Grades 304 and 316, with a wire diametre of 3.00mm and 5.00mm, pitches of 25.00mm and 50.00mm, in sizes 600.00mm x 500.00mm to 2500.00mm x 1200mm. Everything currently in stock is specified in the tables below.

In addition to the below sizes, custom sizes are available upon request.

● Stocked Item ○ Market Available

Anything not currently in stock/Market Available can be obtained via indent.

 Welded Mesh Panel
Aperture Wire Dia Pitch Grade Size (Panels) Availability
21.85 3.15 25 304 2000x1000 ○
21.85 3.15 25 316 2500x1200 ○
46 4 50 304 2000x1000 ○
46 4 50 316 2500x1200 ○
47 3 50 304 2500x1200 ○
94 6 100 304 2500x1200 ○
97 3.15 100 304 2500x1200 ○

YM
Wire Mesh 3 50 304 2400x1200 ●
Wire Mesh 3 25 304 2400x1200 ●
Wire Mesh 3 50 316 2500x1200 ●
Wire Mesh 3 25 316 2500x1200 ●
Wire Mesh 3 50 316 600x500 ●
Wire Mesh 3 25 316 600x500 ●
Wire Mesh 5 50 304 2500x1200 ●
Wire Mesh 5 50 316 2500x1200 ●



 Welded Mesh Coil
Aperture Wire Dia Pitch Grade Width (Coil) Availability
5.55 0.8 3.35 304 1220 ○
9 1 10 304 1530 ○
9.2 0.8 10 304 1220 ○
11.1 1.6 12.7 304 & 316 1220 ○
11.1 1.6 12.7 304 915 ○
11.5 1.2 12.7 304 1220 ○
16 2 18 304 1220 ○
23.4 2 25.4 304 & 316 1220 ○
23.8 1.6 25.4 304 1220 ○
24.4 1 25.4 316 1220 ○
48 2 50 316 1220 ○



Woven Mesh
Approx  Wire Open Area
Aperture Diameter % Availability
22.4 3.15 77 ○
16 2.5 75 ○
12.7 3 65 ○
11.1 1.6 77 ○
10.6 2 70 ○
10 2.5 63 ○
7 1.6 66 ○
6.3 2 57 ○
5.3 1 71 ○
4.7 1.6 55 ○
3.9 1.2 58 ○
3.5 1.6 46 ○
3.3 0.91 61 ○
3 1.2 51 ○
2.7 1.6 38 ○
2.5 0.7 60 ○
2.3 0.91 51 ○
2.1 0.45 67 ○
2 1.2 39 ○
1.9 0.61 58 ○
1.6 0.91 41 ○
1.6 0.5 58 ○
1.4 0.71 44 ○
1.3 0.5 52 ○
1.2 0.9 32 ○
1.2 0.37 58 ○
1.1 0.45 51 ○
1 0.56 42 ○
0.9 0.71 31 ○
0.9 0.37 50 ○
0.81 0.45 41 ○
0.745 0.31 49 ○
0.71 0.56 31 ○
0.6 0.45 32 ○
0.57 0.27 46 ○
0.53 0.31 39 ○
0.415 0.22 40 ○
0.31 0.2 38 ○
0.26 0.16 35 ○
0.21 0.15 34 ○
0.19 0.125 34 ○
0.15 0.1 36 ○
0.13 0.08 37 ○
0.11 0.071 37 ○
0.1 0.063 37 ○
0.09 0.05 42 ○
0.075 0.052 36 ○
0.063 0.04 38 ○
0.053 0.04 32 ○
0.045 0.036 31 ○
0.04 0.032 31 ○
0.034 0.03 27 ○
0.025 0.025 25 ○



Modern Metal Mesh

Stirlings can source a wide range Architectural Stainless Mesh panels, belts and sheets. Modern Architectural Mesh can be used in a range of applications including architectural facades, filtering and conveyor systems.

Market Available, please enquire for more information.





Rigid



Flexible
