Stainless Steel Chequer Plate
Stainless steel Chequer (also known as Checker) Plate features a regular pattern of lines on one side. This textured pattern provides excellent slip resistance, making it ideal for industrial flooring, walkways, ramps, and vehicle interiors.
Chequer Plate is manufactured to ASTM A793 and is available in Austenitic Grades 304/L and 316/L.
Stirlings stocks Type B Hot Rolled Chequer Plate in thicknesses from 3.175mm to 6.35mm in sizes from 1219.00mm (W) x 2438.00 (L) to 1524.00mm (W) to 3048.00mm (L). Everything currently in stock is specified in the table below.
● Stocked Item ○ Market Available
Anything not currently in stock/Market Available can be obtained via indent.
| Thick | Width | Length | Kg | 304/L | 316/L |
|---|---|---|---|---|---|
| ness | Per Plate | Chequer | Chequer | ||
| (mm) | (mm) | (mm) | Tread | Tread | |
| CC304 | CC304 | ||||
| 3.175 | 1219 | 2438 | - | ● | ○ |
| 3.20 | 1250 | 2500 | 75.00 | ● | ○ |
| 4.76 | 1250 | 2500 | 120.00 | ● | ○ |
| 1524 | 3048 | 180.00 | ● | ○ | |
| 6.35 | 1250 | 2500 | 215.00 | ● | ○ |
| 1220 | 3048 | 197.00 | ○ | ● | |
| 6.00/6.35 | 1524 | 3048 | 230.00 | ● | ● |

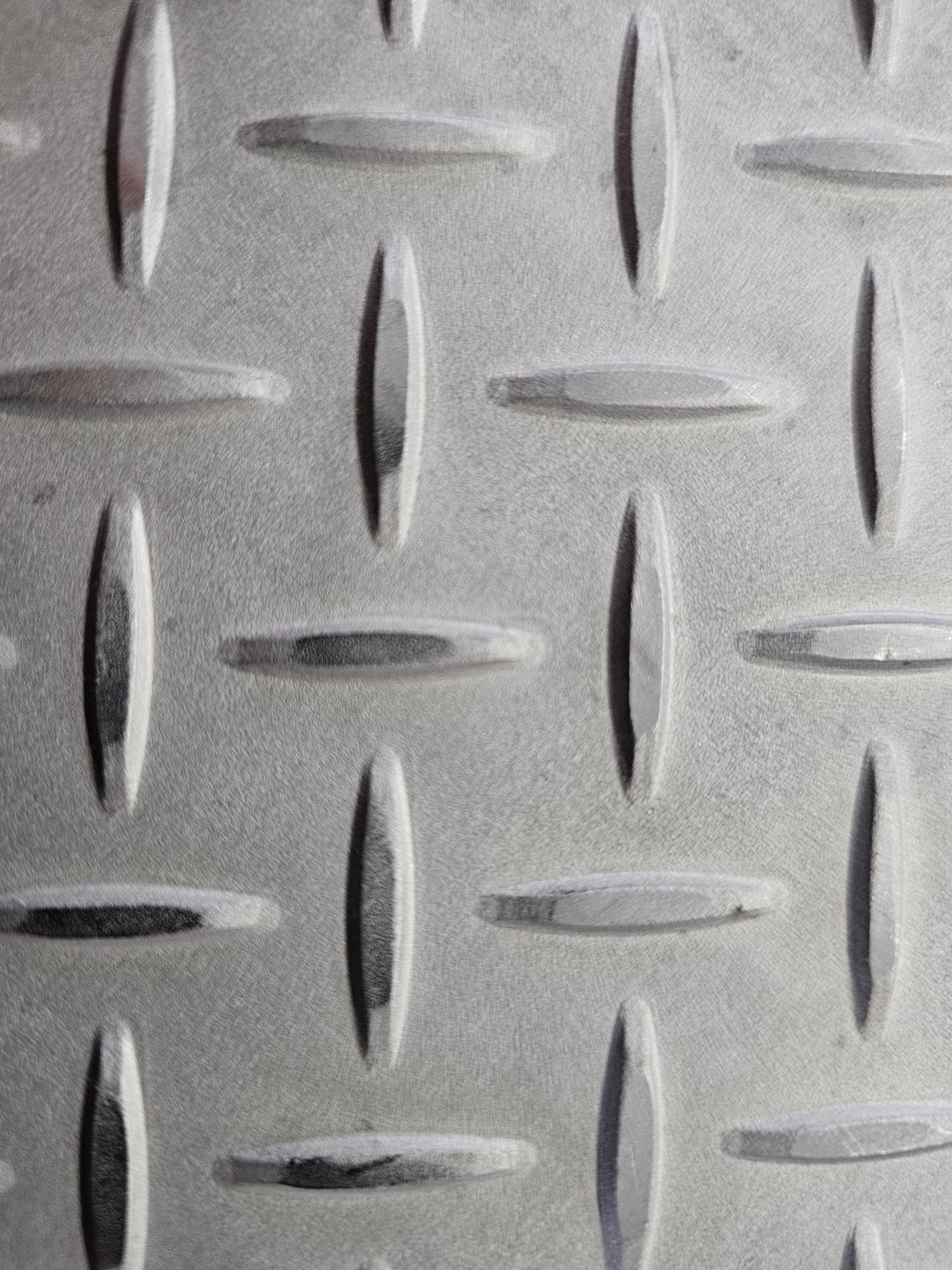

Type B Hot Rolled Chequer Plate at Stirlings.
